Tamglass 2.1×3.6

Tamglass 2.1×3.6

Enquire

Make : Tamglass

Model : 2.1×3.6

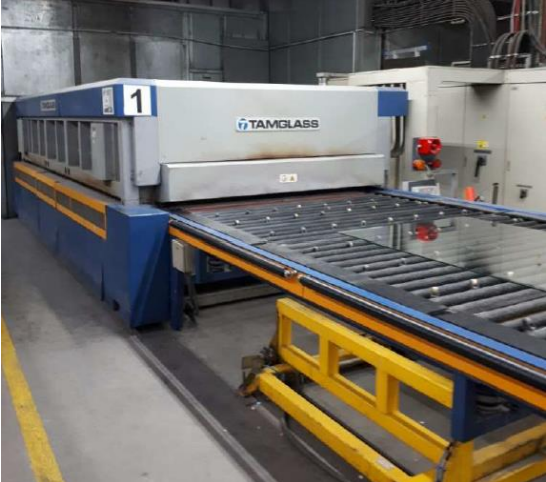

Description : Tamglass 2.1 x 3.6 Toughening Furnance (HTF III 2136 – AES-10-R)

  • maximum glass dimensions: 2.080 x 3.600 mm
  • glass thicknesses: 3 mm to 19 mm
  • for 3 mm boost-function: with compressed air

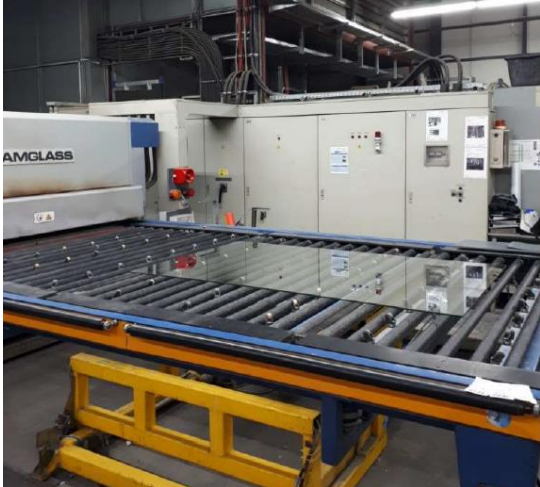

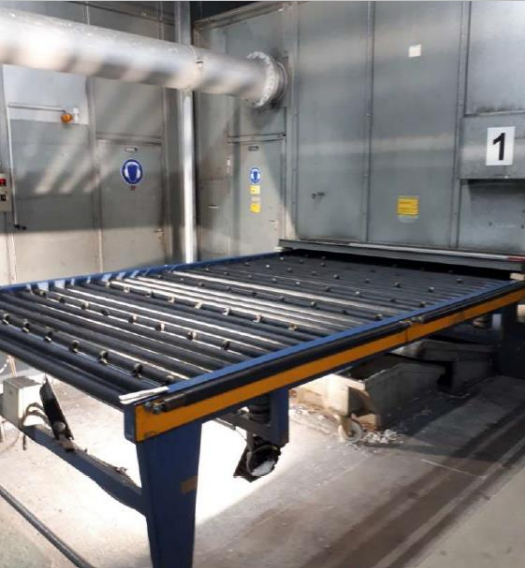

  • operation terminal: at the loading-bed and unloading-area
  • operating software: TAMGLAS operating software version 6.17
  • electrical transformer: 1.000 kVA
  • energy consumption: approximately 12,9 kWh/m² (KPI in 2018)
  • heating elements: main heating elements are length oriented (90° to rolls) at the beginning and end of the loading area are 2 heating zones which are side by side oriented (parallel to the rolls)
  • Available for viewing by appointment only

Age : 1988

Price : Price on Application
