Schiavo Milling Machines

Schiavo Milling Machines

Enquire

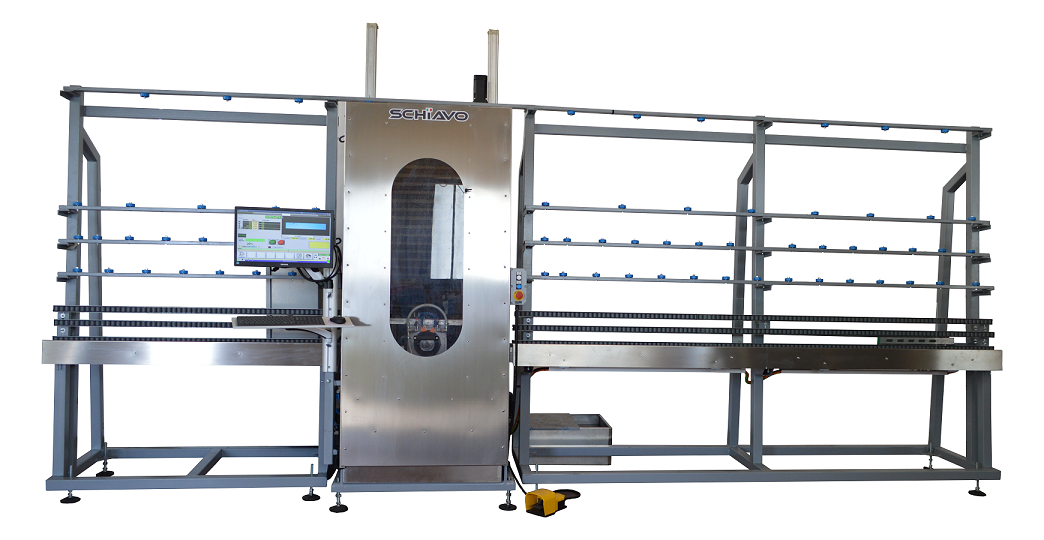

Make : Schiavo

Model : FV Series

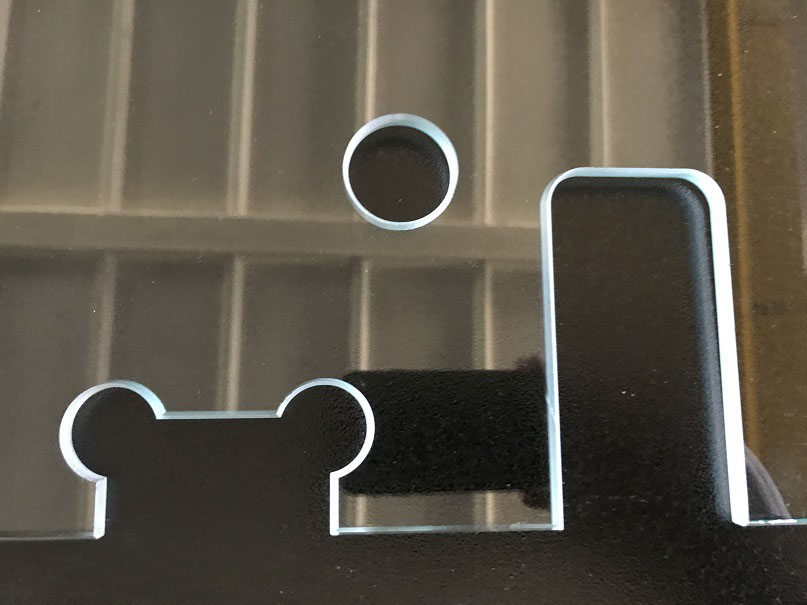

Description : Vertical Glass Milling, drilling and counter-sinking machine to obtain the notches of door hinges and fittings

Glass Thickness:4 – 25 mm5/32″-31/32″
Working area (LxH):200×1000 mm7,8″x39″
Min Workable piece (LxH):400×300 mm15 3/4 x12″
Max Glass size (LxH):3210×2400 mm126″x95″
Installed Power:8,0 KW
Spindle MAX Speed:10.000 RPM
Working height:800 mm(31,5″)
Overall Dimensions (LxWxH):4300x1300x2200 mm(169x51x86”)
Milling tool Length:75 mm(3″)

Age : New

Price : Price on Application
