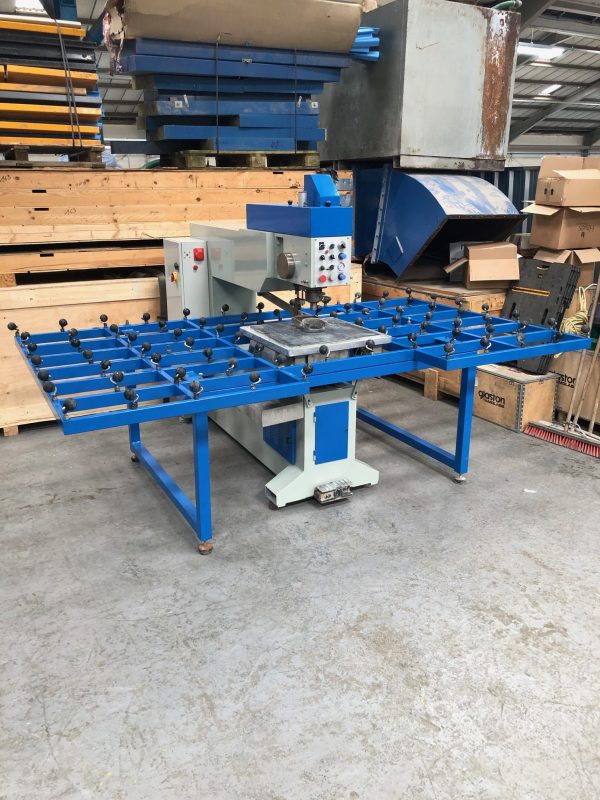

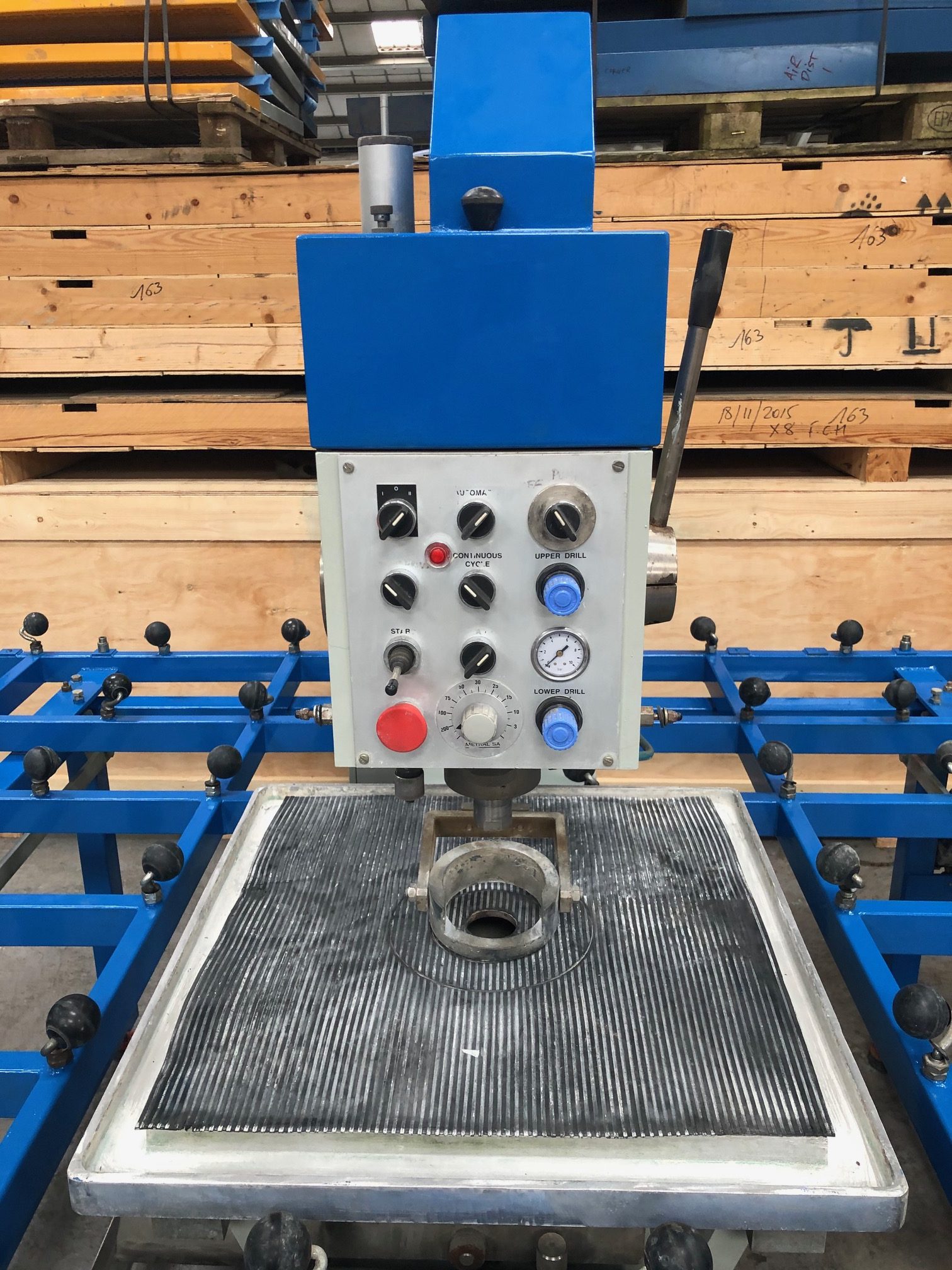

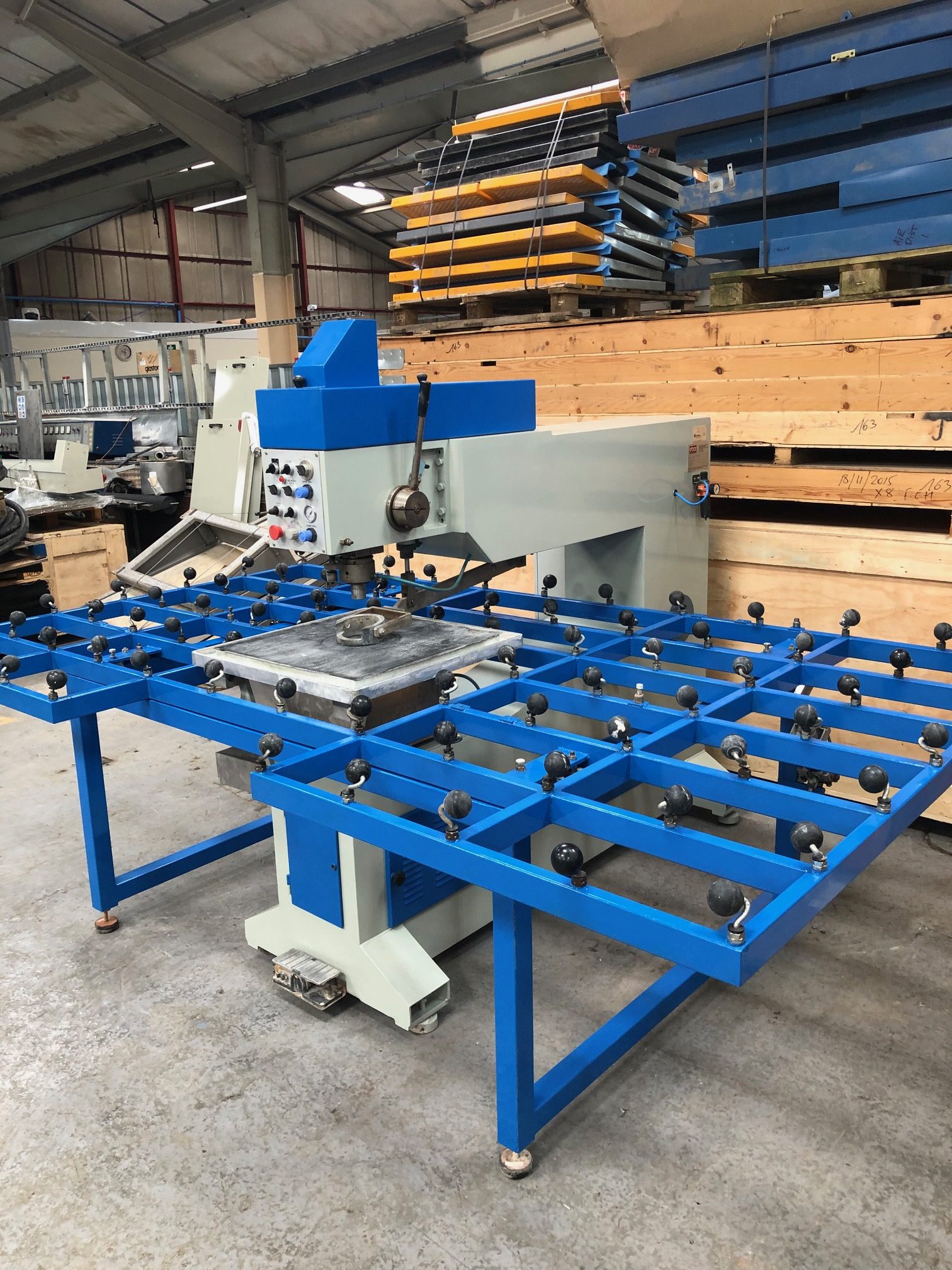

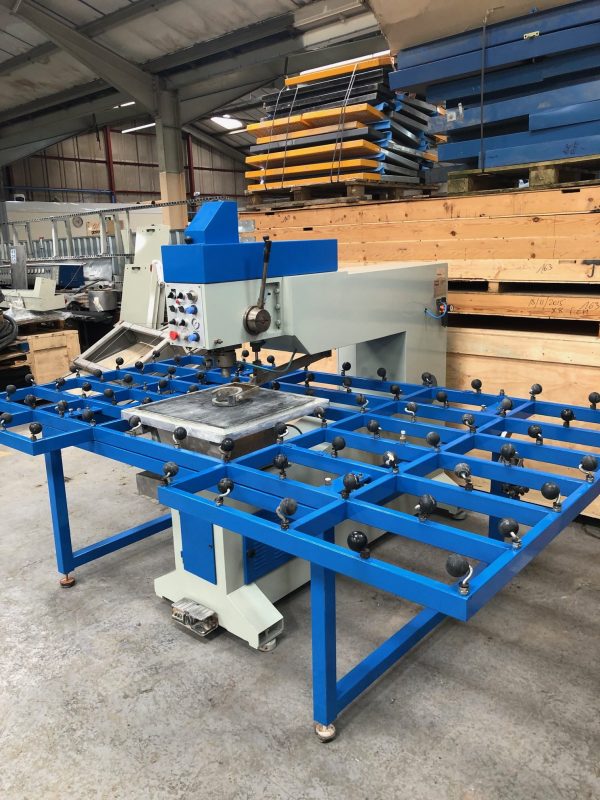

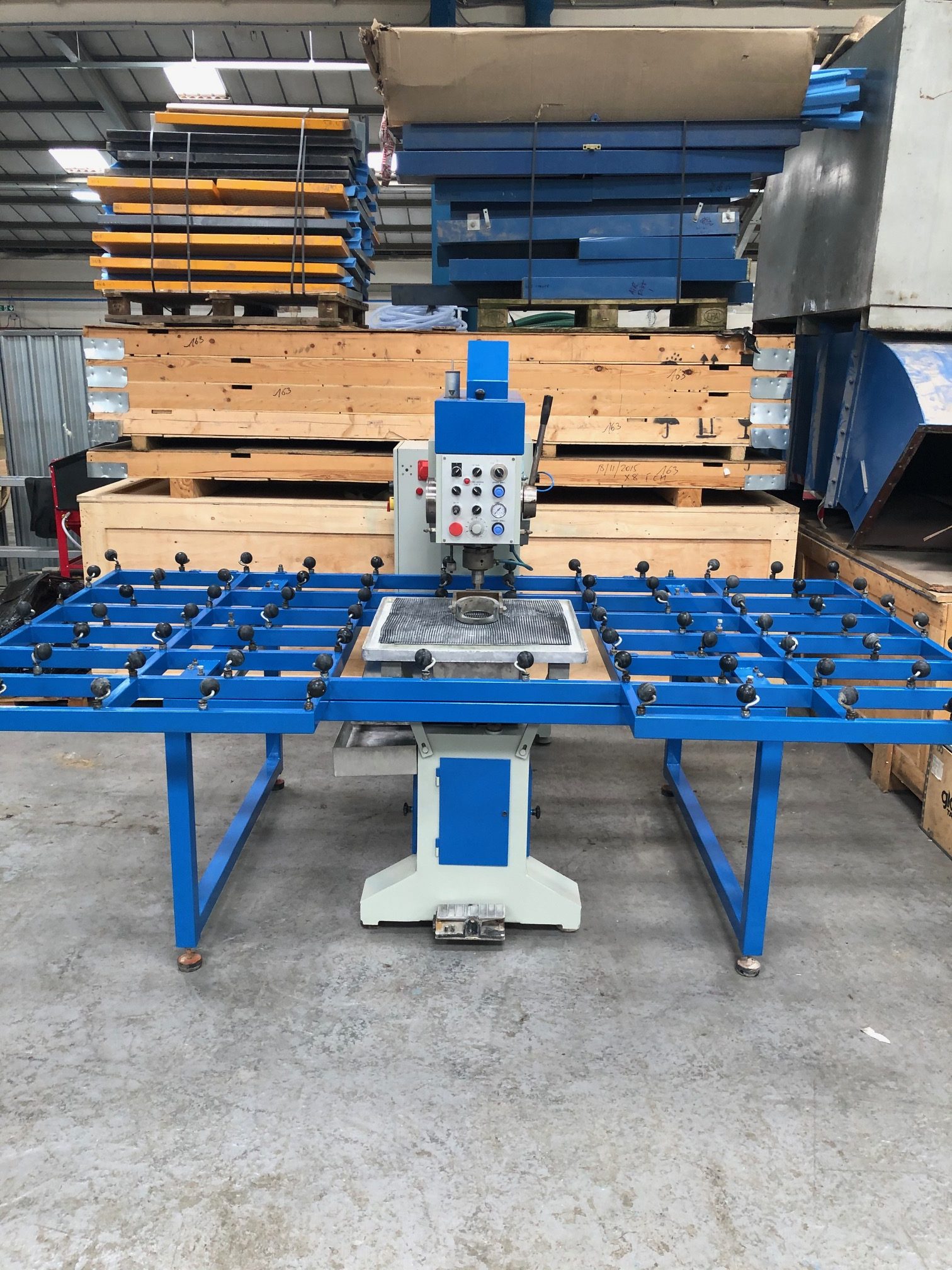

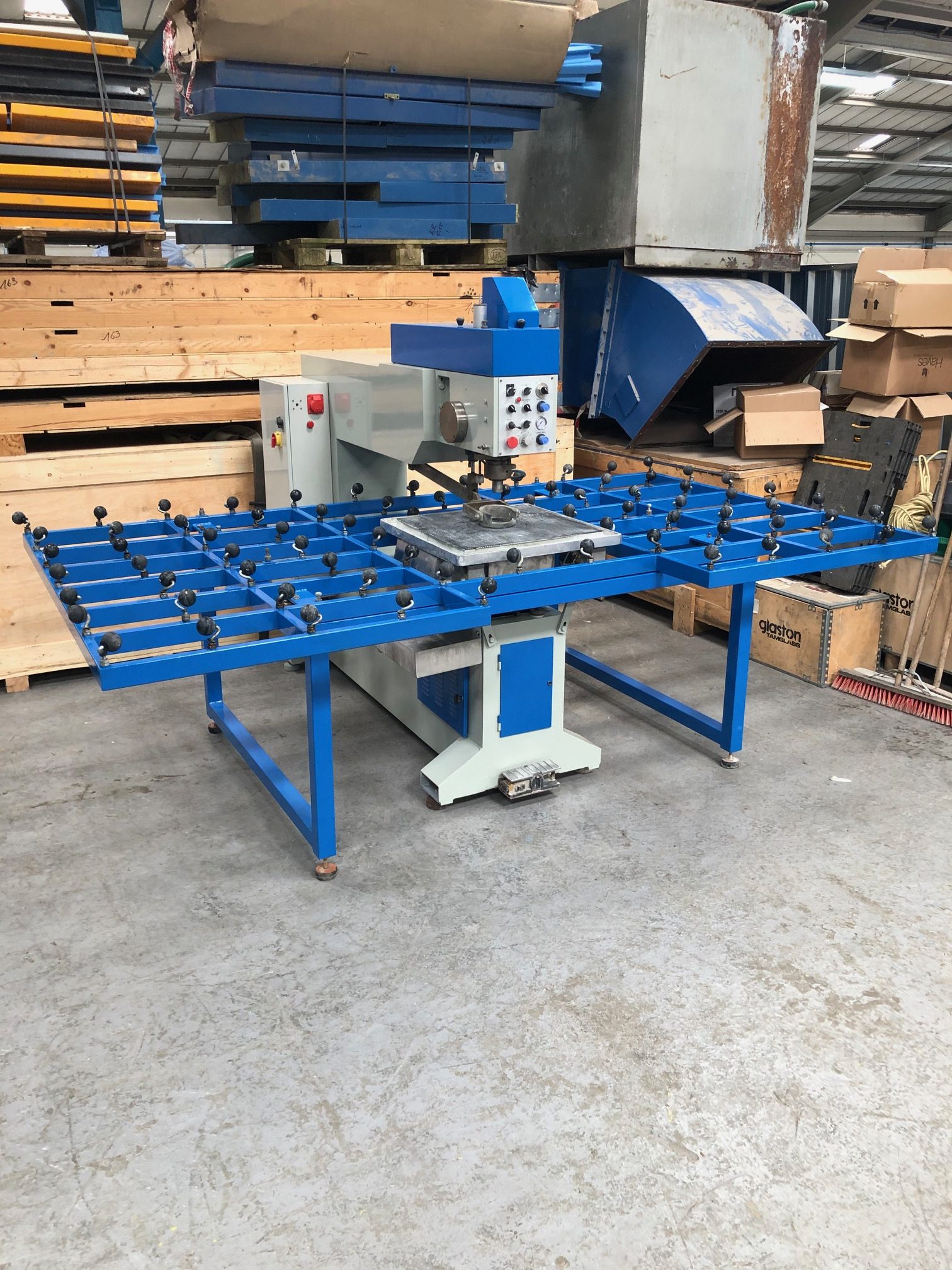

Metral TD3 Glass Drill

Metral TD3 Glass Drill

Enquire

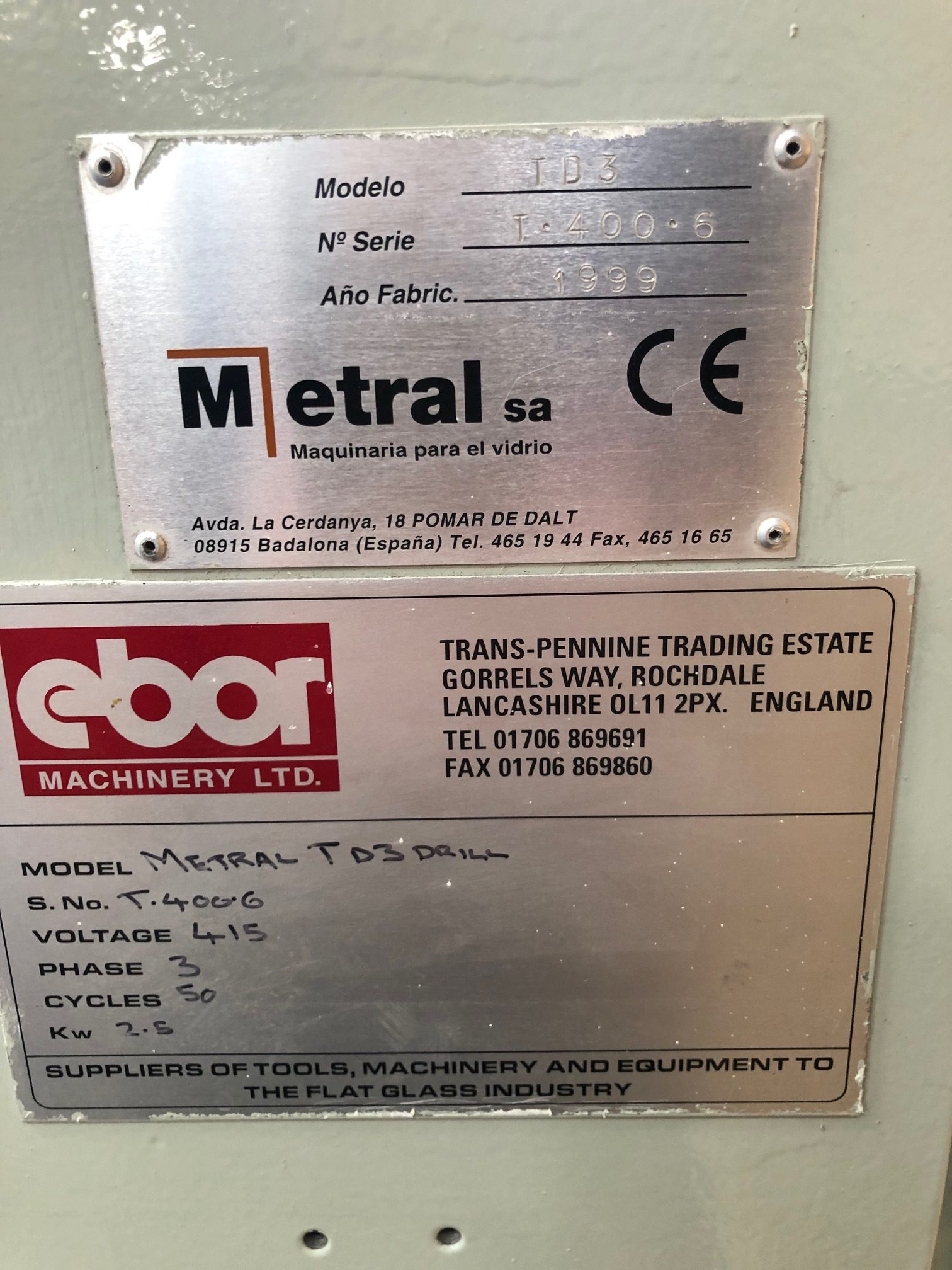

Make : Metral

Model : TD3

Description : Metral TD3 Glass Drill

  •  Manufacture 1999
  • Double headed drill up to ø 180 mm.
  • Automatic lower and optional manual or automatic upper drilling.
  • Automatic Cycle:
    – 1  On and Off
    – 2 Clamping of glass
    – 3 Slug ejection
    – 4 Continuous cycle for work in series
  • Optional: laser centering.
  • Caster table (2.500 x 1.500 mm (100” x 60”)) for support and glass location when drilling of
    large sheets of glass.
  • Drill diameter: from 3 to 180 mm.
  • Glass thickness: from 2 to 50 mm.
  • Distance to bit centre: 1.200 mm.
  • Dimensions: height 2.000 mm. width 1.300 mm. depth 1.700 mm.
  • Weight: 775 KG

Age : 1999

Price : Price on Application
